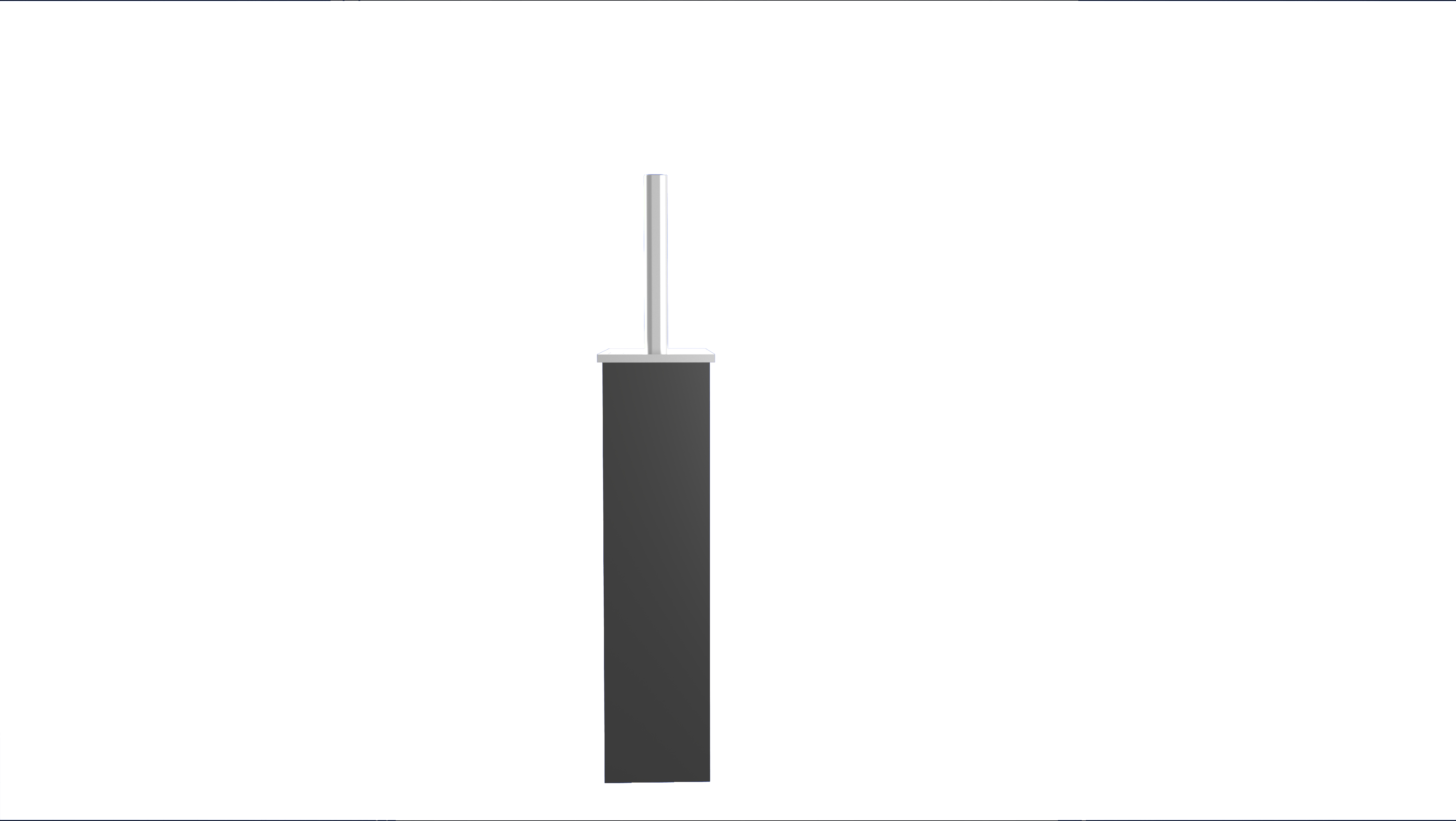

Lifting electronic nameplate

The one-piece design enables advanced paperless electronic table cards with intelligent lifting and hiding.
The transmission mode adopts multi-balance bar silent transmission, and the riser panel material;
Can be used with software to achieve many functions without paper.
It can also be upgraded independently.
Multi-function fusion interface, one interface to solve all signals of power supply, touch and video.
Material technology: all aluminum alloy shell, the overall CNC design, finely crafted and integrated,
Sandblasted anodizing, the screen is the thickest 8MM
Screen size: 10 inches on both sides,
Physical resolution 1024*600;
Display viewing angle: IPS full viewing angle;
Display ratio: 16:9 touch screen type; magnetic capacitive screen, 10 touches
Similar to the Ipad operating experience;
Can display the participant's name / title / unit name / LOGO / emblem / monogram, etc., the background can be customized for network editing, support for timing refresh; system uses 4-core 8-thread processor dual networking,
Support RJ45 network cable networking.
The adapter is powered and powered by the POE network. Optional battery power
It can be controlled through the network networking background.

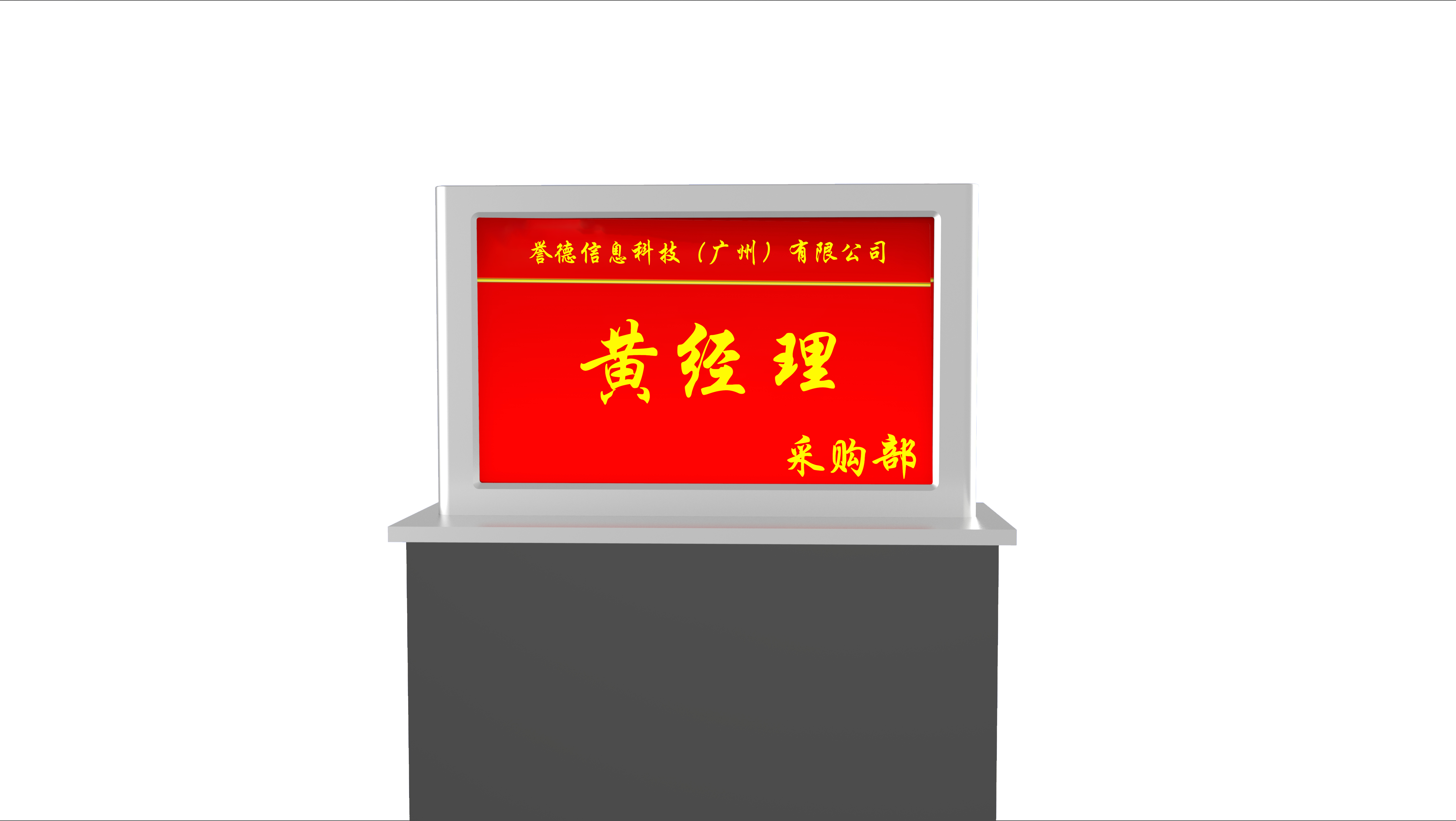

Dual screen can display the participant information synchronously, including the participant's name, title, unit name, unit LOGO, emblem, etc., and support custom editing such as background color, template, text size color, font, etc.
Support stand-alone handwriting renaming, support meeting management personnel to modify and add participant information through the terminal's own touch soft keyboard;
Automatic import of the name function: support the Excel name list in the U disk automatically and the electronic table card check-in;
Support call service, conference exchange, conference information, conference notice, voting and other functions.
Dual-screen asynchronous operation, the front screen supports the voting function, and supports the chairman function startup function to support the terminal touch voting,
The screen name is displayed normally;
Support meeting participants to simulate the layout function, support the temporary absent mechanism of the participants and the temporary increase mechanism, one-click ranking.
