Volume controller

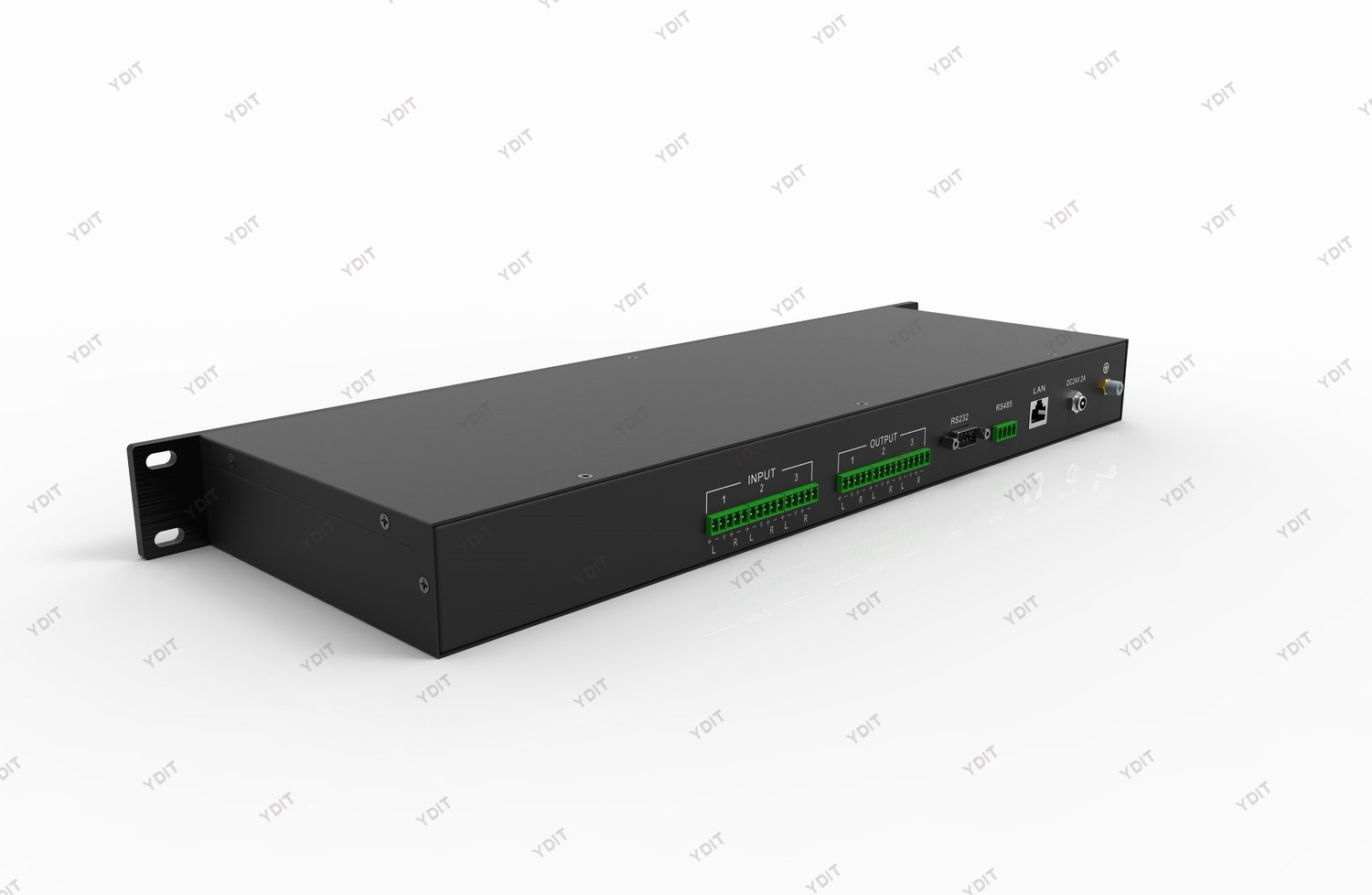

YD-VOL03 volume controller is an electronic product that adjusts linear background music. It communicates with the central control host through RS-232/RS-NET/TCP protocol to form a centralized control system. It can realize the unique operation of three groups of stereo channel mute and volume up and down, suitable for demonstration hall, monitoring command center, conference room and other occasions.
★ Provide 1 channel RS-232 control interface, 1 channel RS-485 ID control interface, 1 channel TCP/IP control interface, communicate with programmable control host;
★ 3 sets of stereo channel volume controllers, which can control and separate independent control at the same time;
★ Input and output are connected by 5P Phoenix connector;
★Using American high-fidelity enthusiast PGA2311 digital volume adjustment chip;
★ Panel with high-brightness LCD display data and corresponding adjustment indicators;
★ panel with manual adjustment button control function;;
★ Supports input and output of L and R channels to support balanced and unbalanced connection;
★The host is powered by 220V/adapter;




Technical parameters:
frequency response	8Hz to 60KHz (-3dB max)
Input Impedance        Output impedance	10Ω or 600Ω        10Ω
Control the number of ways	3 channels of stereo
Audio Input and Output Interface	5P Phoenix Connector
232 control port	1
RS-485 control port (including ID code)	1
TCP/IP Control Port	1
Serial Communication Protocol	The baud rate is 9600, 1 start bit, 8 data bits, no parity, control code is character, and the computer connection uses cross line.
Host Power	220V/adapter
