Central control host

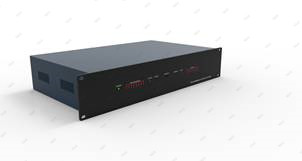

YD-PROC-III is a simple network programmable control host. It uses a 32-bit embedded processor with a frequency up to 1GHz. It has built-in large memory and can process complex logic instructions at high speed. It can realize multiple types of control modes. Supports control of IR, RS-422/RS-485 and other third-party devices, embedded infrared learner, supports TCP/IP, UDP to control multiple third-party devices. The design of the host combines the concept of a new wave. It can be easily edited into the handheld mobile device of iOS and Android system through programmable software. The central control host does not need programming, which is convenient for engineering debugging, maintenance and use.
★The panel comes with a power indicator and a work indicator.
★ The host needs an external router to support Apple system and Android system.
★ Serial input: 1 channel default baud rate 115200, can be modified.
★ Network to serial port (transparent transmission): 1 channel, the baud rate is subject to the network settings.
★ Serial port expansion output: 8-channel baud rate adjustable 1200 -115200
★ Network: 1 channel 100M RJ-45 interface, support TCP / IP, UDP, client and server, support network data sharing, etc., the front panel with 8 working status indicators.
★ RS-NET interface: 2 channels of bidirectional communication, the baud rate defaults to 38400, supports external control relays, dimmers, volume controllers and other equipment.
★ Infrared transmission: 8 independent independent infrared ports, support 10K-80K full-band infrared command, the front panel with 8 working status indicators.
★Infrared learning: 1 channel front panel full-band infrared learning receiver, support learning 10K-80K infrared command
★ Support TC/PIP control protocol.
