Central control host

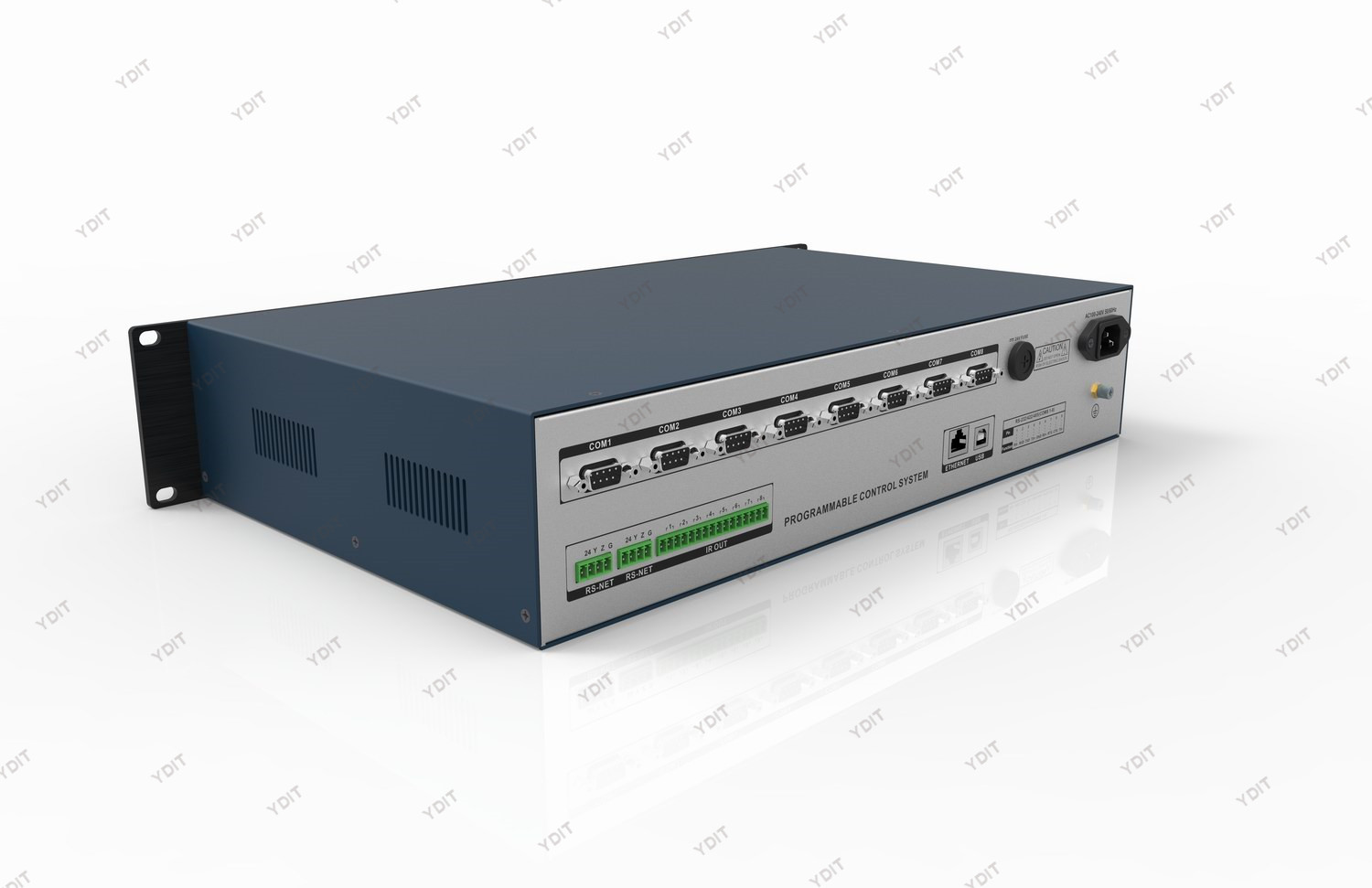

YD-PROC-II is a programmable common control host that integrates RS-NET communication port, IR (infrared control port), COM (communication control port) and so on. Using the world's leading integration technology, providing high-speed and accurate centralized control environment, open user programming interface, can complete a variety of complex control interface programming, support Mac OS X (Apple series) or Android Android / WINDOWS system control methods.
Adopting the new generation of ARM11 industrial-grade embedded processing chip in the United States, the 32-bit embedded processor with a frequency of 500Mhz, built-in 128M memory and 512M storage FLASH, can run complex logic instructions at high speed;
★ Provide open C language programmable control platform, user-friendly Chinese operation interface and interactive control structure, support Mac OS X (Apple series) or Android touch screen / WINDOWS system control methods;
★ equipped with a set of RS-232, IR, to support integrated control of third-party devices;
★ Support 8 channels of independently programmable infrared transmission interface, the maximum support is extended to 256 channels, support for controlling multiple identical or different infrared devices, allowing repeated import of custom database;
★The host provides 8 independent programmable RS-232/422/485 control interfaces, users can program a variety of control protocols and codes, and the maximum support extends to 32-channel control interfaces;
★The front panel of the main unit comes with power indicator and work indicator;
★ Support multiple network communication protocols: 2-way RS-NET, Ethernet or WiFi wireless LAN;
★Using standard USB2.0 or WIFI wireless communication interface to update the processing programming program; support wireless WIFI uploading program;
★ Support multiple central control cascade modes; support the same control interface to control multiple central control hosts; control all devices with TCP/IP and UDP protocols;
★ Support local/remote control methods such as wireless/wired touch screen, computer, WIFI and Ethernet;
★International universal wide adaptable power supply design (AC100~240V), support seamless integration of CCSEB technology, applicable to any country and region;
★ 2U air Dura aluminum metal chassis design, pressure and safety, can be installed in any 19-inch cabinet.
