Central control host

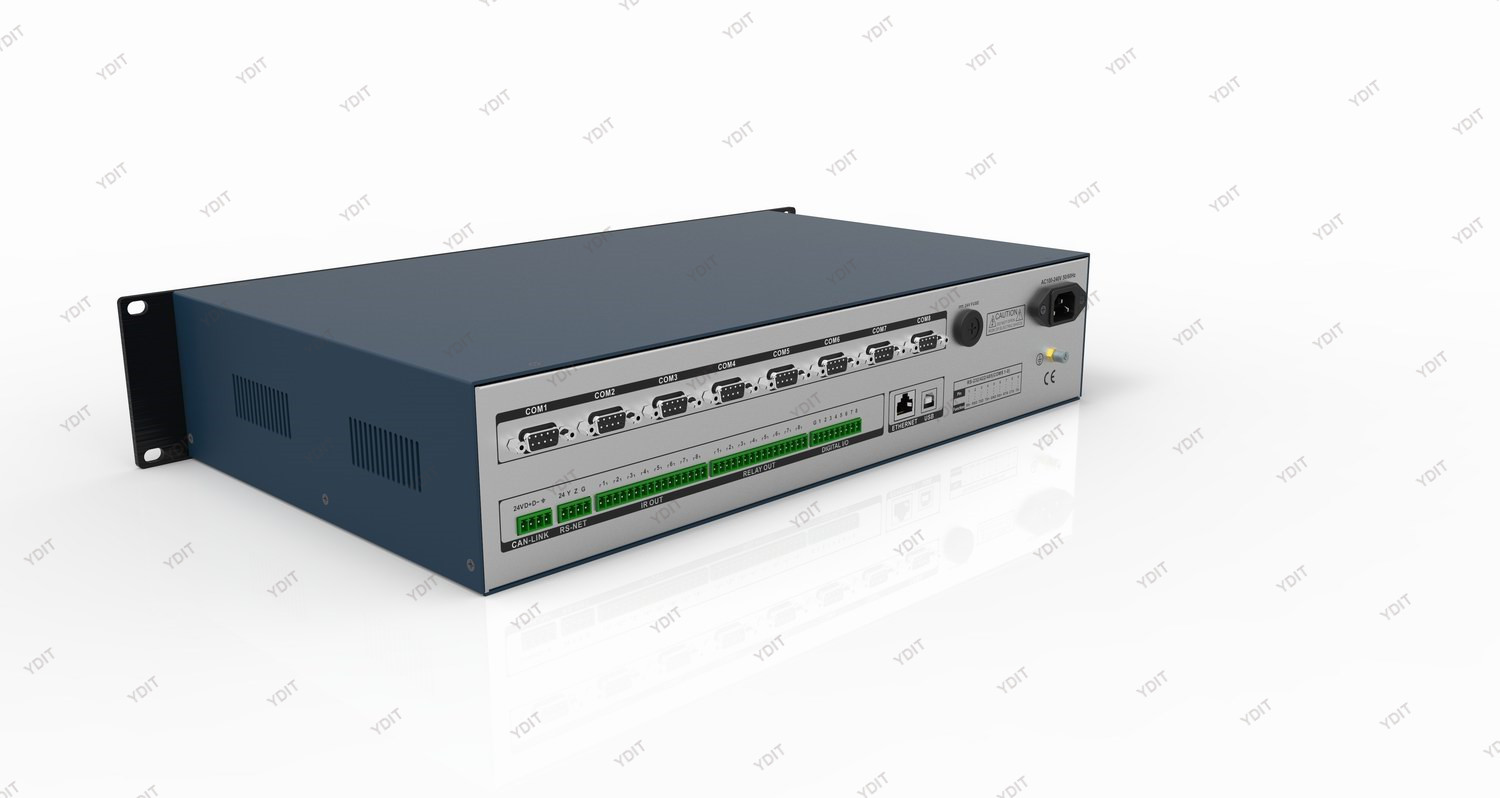

YD-PROC is a network communication control host independently developed by YDIT. It uses a 32-bit embedded processor with a frequency up to 700MHz, ARM11 CPU, 256M memory, and 1G Flash memory. Using C-like programming, you can complete complex, flexible and versatile multimedia control and management solutions. It can be applied to various types of conference rooms such as government units, enterprises, hotels, education, radio and television, military, etc. It can also be applied to smart home systems, special industry centralized control systems, etc.
★Using the new generation of ARM11 industrial-grade embedded processing chip in the United States, the 32-bit embedded processor with a frequency of 700Mhz, built-in 256M memory and 1G storage FLASH, can run complex logic instructions at high speed;
★ Provide open C language programmable control platform, user-friendly Chinese operation interface and interactive control structure, support Mac OS X (Apple series) or Android touch screen / WINDOWS system control methods;
★ Equipped with a set of RS-232, IR, digital input and relay control ports to support integrated control of third-party devices;
★Support DMX512 control protocol;
★ Support extended TCP/IP serial port module;
★ Support 8 channels of independently programmable infrared transmission interface, the maximum support is extended to 256 channels, support for controlling multiple identical or different infrared devices, allowing repeated import of custom database;
★ Support 8 digital input / output IO interface;
★The host provides 8 independent programmable RS-232/422/485 control interfaces, users can program a variety of control protocols and codes, and the maximum support is extended to 64-channel control interfaces;
★The front panel of the main unit comes with power indicator and corresponding work indicator, equipped with 8 232/485/422 port working status indicators; equipped with 8 infrared port working status indicators;
★ Support 8-way weak current relay interface, and digital input/output IO interface, the maximum support is extended to 256 channels;
★ Support multiple network communication protocols: RS-NET, RS-LINK, Ethernet or WiFi wireless LAN;
★Using standard USB2.0 or WIFI wireless communication interface to update the processing programming program; support wireless WIFI uploading program;
★ Support multiple network control cascade mode; support the same control interface to control multiple central control hosts; control all devices with TCP/IP protocol;
★ Support local/remote control methods such as wireless/wired touch screen, computer, WIFI and Ethernet;
★International universal wide adaptable power supply design (AC100~240V), support seamless integration of CCSEB technology, applicable to any country and region;
★ 2U air Dura aluminum metal chassis design, pressure and safety, can be installed in any 19-inch cabinet.


Technical parameters
Memory: 256M DDR-RAM, 1G FLASH
RS-NET, RS-LINk and Ethernet (TCP/IP): Yes
Infrared independent transmitting port: 8 way
Digital I/0 port: 8 way
Weak current relay interface: 8 way
RS-232/422/485 communication serial port: 8 way
USB interface: 1 way
Expansion socket: Yes
Grounding wire hole: Yes
Weight: about 4.5KG
Static power consumption: 5W
Power supply: AC100-240V adaptive power supply
Dimensions (mm): 483.0L x 280W x 88.1H
