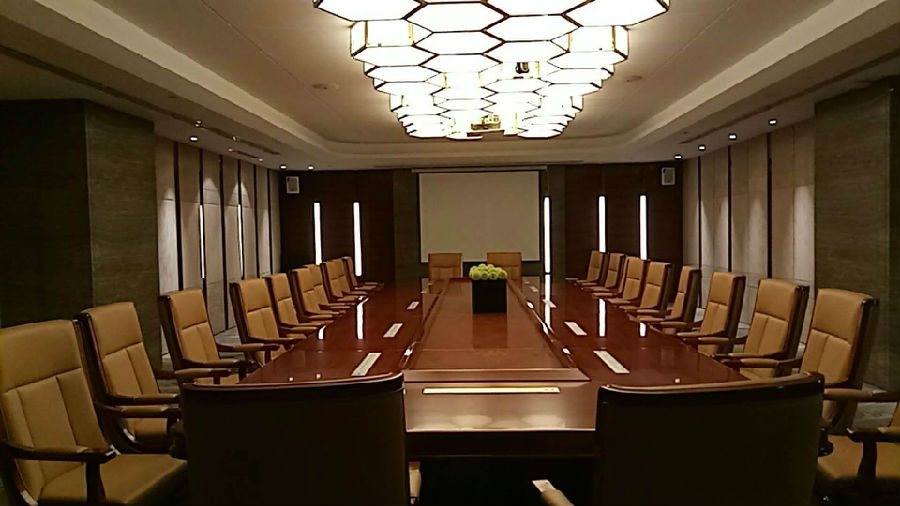

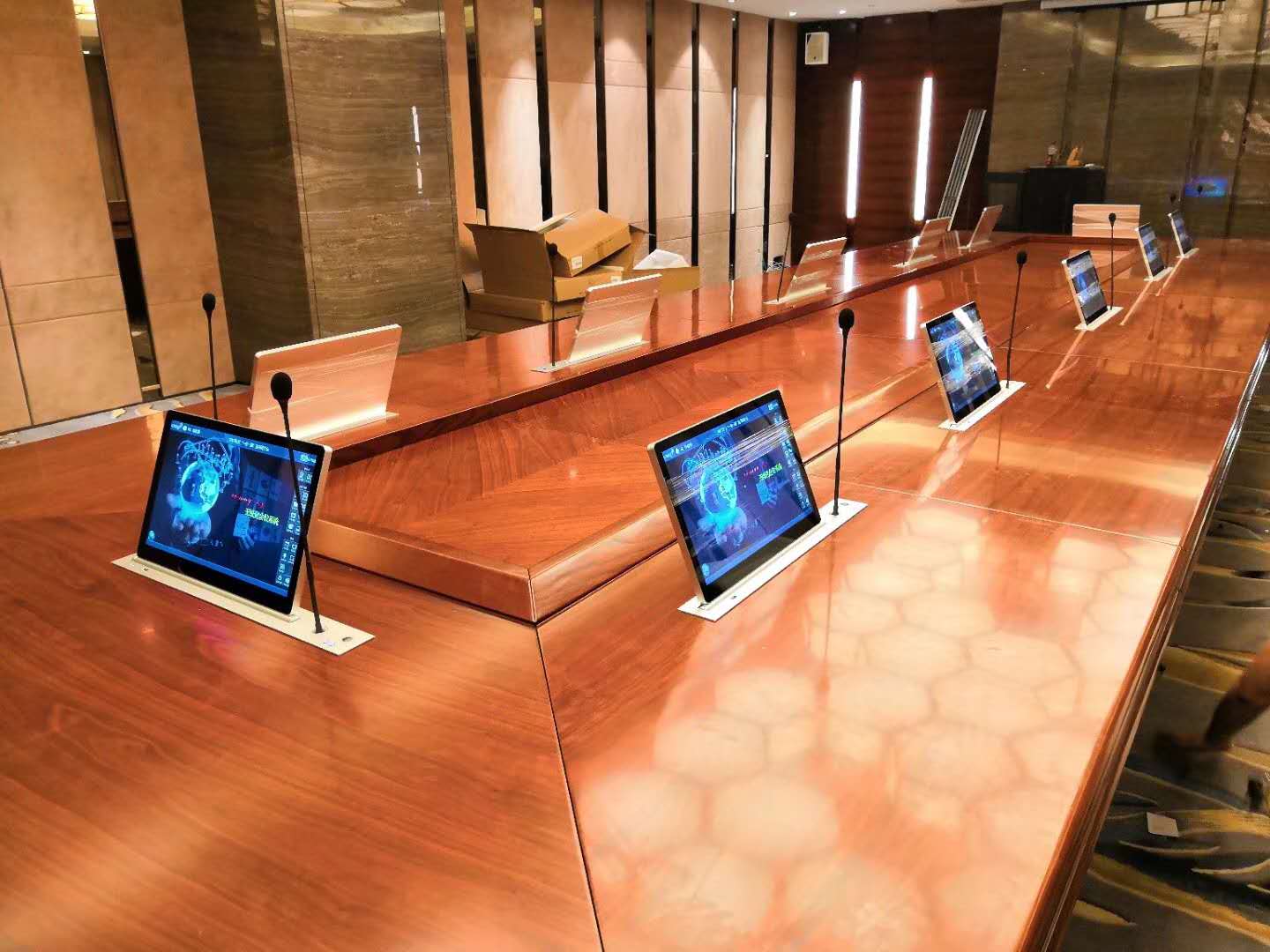

YDIT builds a smart paperless office system for a hotel in Xianyang City, Shaanxi Province

Source:YDIT 誉德 Release time:2019/6/19 9:09:21 Views:978



(Paperless conference system, ultra-thin one lifter, microphone lifter) Ultra-thin blade design, high-definition touch LCD screen, beautiful appearance, the whole machine! Integrated touch screen: capacitive screen, support 10 touch, induction strength <=10g, touch response time <=5ms, dynamic contrast ratio: 100000:1 High-resolution (1920*1080) true color digital LCD screen, the display is clear and bright; It can be connected to the control keyboard or centralized control system through RS-232 communication cable to realize the unification of remote control. All lines are equipped with standard double insulation and safety ground leakage protection devices, without induction and no leakage. This machine is mainly used in various high-end conference occasions and paperless intelligent conferences; it is suitable for government affairs, business, teaching and public institutions. (paperless conference system, ultra-thin one lifter, microphone lifter)

(Paperless Conference System, Ultra-thin One Lifter, Microphone Lifter) 1. Ultra-thin HD display and round shaft lifter without exposed cable, no connection back plate, no exposed screws, ensuring high-definition display Beautiful and generous;
Adopting the leading industry standard for corrosion resistance of aluminum alloy case, the structure CNC carving process is lighter and thinner;
The back frame of the display is made of pure metal aluminum alloy, the thickness is about 7.5mm, and the surface treatment is anode drawing;
The internal use of a reasonable tank chain routing structure, the machine will rise and fall in the operation will not appear fold line card line;
The panel buttons are made of metal, and the appearance is fine and the texture is superior. Long-term use will not reduce the sensitivity of the button;
The panel is equipped with a standard metal computer host button and a USB data interface to enrich the product functions;
In addition to the screen and electronic components, the panel chassis and internal metal parts are made of aluminum alloy, which is highly resistant to corrosion.
Rich interface, panel: USB*1, power button*1;
Rise, drop, pause, switch, menu, video input: VGA, HDMI; data transmission: USB*2, RS485 control interface: RJ45*2
(paperless conference system, ultra-thin one lift, microphone lifter ) The microphone microphone can pick up more than 20CM, which can resist interference from mobile phone signals;
The microphone is connected by hands-on 8-core cable for conference;
This machine is equipped with a conference host to support the conference video tracking function;
The machine realizes the lifting of the LCD screen/microphone straw under the control of the lifting switch;
The door on the LCD/microphone lift process panel can be automatically turned on and off;
When the LCD screen is raised to the specified position, it automatically supplies power, and the power is automatically turned off one second before the start of the drop; the microphone can be controlled after the microphone is raised to the designated position, Mai
The machine can realize unified lifting or separate lifting of remote control through wire control, wireless remote control and centralized control system connection;
Intelligent and efficient, saving resources, easy to install, easy to operate;
Synchronous wheel synchronous belt drive, linear bearing guide, stable structure;
Color black / silver to choose from (other colors accept custom)
(paperless conference system, ultra-thin one lift, microphone lifter)
